Pragati Metal supplies incoloy 825 round bar in different sizes, lengths and thicknesses, made to whatever specification the client needs. Incoloy 825 is a chromium, nickel and iron alloy with titanium, copper and molybdenum added. That mix is what gives it good resistance to pitting, crevice corrosion and stress corrosion cracking in acidic conditions. We check the raw material before it goes into production and follow the standard manufacturing norms right through the process.

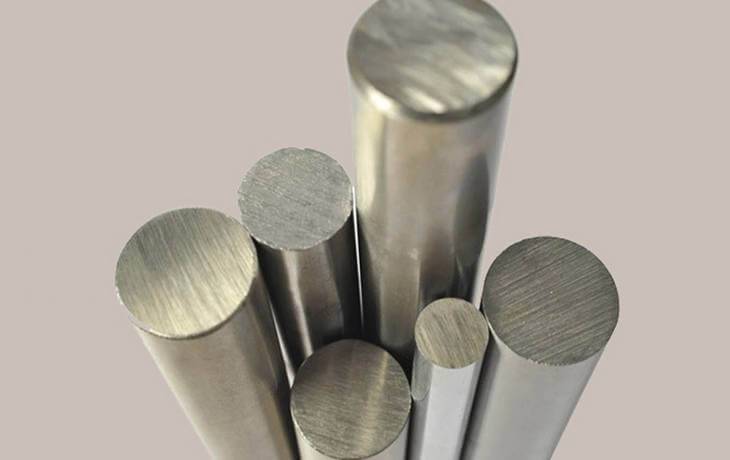

Inconel 825 Round Bar

Inconel

825

Bar/Rod

Incoloy 825 Round Bar for Industrial Applications

Each incoloy 825 round bar comes out with a clean surface finish and correct dimensional tolerance. It handles both oxidising and reducing acids, which is useful in plants running mixed acid processes, sulphuric, phosphoric and nitric acid. A lot of alloys can't cope with that range and fail early. This one holds up longer, so maintenance is needed less often.

Incoloy 825 Round Bar Specifications & Types

Our unit uses CNC cutting, forging and finishing equipment to keep sizes consistent batch after batch. Each incoloy 825 round bar is inspected at the raw material stage, again partway through, and once more before it leaves. The quality team runs chemical tests, mechanical tests, pitting resistance tests, hardness tests and intergranular corrosion tests on samples from every lot. Results get checked against ASTM and ASME limits before anything is released for dispatch.

We supply incoloy 825 round bar to pharmaceutical companies, food processing units, oil and gas operators, petrochemical plants and power generation setups, mostly where corrosive conditions are a factor. For packing, we use bubble wrap, wooden boxes, plywood cases or plastic sheets, depending on the size of the order and where it's going. Both domestic and export orders go out on fixed schedules, and we offer sea or air freight based on how urgent the order is.

Get in touch for a quote on the incoloy 825 round bar size and quantity you need.

Inconel Alloy 825 Round Bar Specification

Standard ASTM B425, ASME SB425
Round Bar Size 3mm~ 800mm
Square Bar Size 4mm* 4mm ~100mm* 100mm
Flat Bar Size 2mm ~ 100mm
Hex Bar Size 2mm ~ 100mm
Angle Size 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm
Thickness 50 mm to 6000 mm Long
Length 1 To 6 Meters, Custom Cut Length
Form Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc

Types Of Incoloy 825 Round Bar

Inconel Alloy 825 Round Bar

Incoloy 825 Round Bar

ASTM B425 Incoloy 825 Round Bar, UNS N08825 Round Bar, 2.4858 Round Bar, Inconel 825 Round Bar Exporter, Inconel 825 Round Bar Supplier, Incoloy 825 Round Rod Manufacturer in Mumbai/India.

Inconel Alloy 825 Square Bar

Incoloy 825 Square Bar

ASTM B425 Incoloy 825 Square Bar, UNS N08825 Square Bar, 2.4858 Square Bar, Inconel 825 Square Bar Exporter, Incoloy 825 Square Bar Supplier, Inconel 825 Square Rod Manufacturer in Mumbai/India.

Inconel Alloy 825 Hex Bar

Incoloy 825 Hex Bar

ASTM B425 Inconel 825 Hex Bar, UNS N08825 Hex Bar, 2.4858 Hex Bar, Inconel 825 Hex Bar Exporter, Incoloy 825 Hex Bar Supplier, Inconel 825 Hex Rod Manufacturer in Mumbai/India.

Inconel Alloy 825 Flat Bar

Incoloy 825 Flat Bar

ASTM B425 Inconel 825 Flat Bar, UNS N08825 Flat Bar, 2.4858 Flat Bar, Inconel 825 Flat Bar Exporter, Incoloy 825 Flat Bar Supplier, Inconel 825 Flat Rod Manufacturer in Mumbai/India.

Inconel Alloy 825 Forged Rod

Incoloy 825 Forged Rod

ASTM B425 Inconel 825 Forged Bar, UNS N08825 Forged Rod, 2.4858 Forged Rod, Inconel 825 Forged Rod Exporter, Incoloy 825 Forged Rod Supplier, Inconel 825 Forged Rod Manufacturer in Mumbai/India.

Inconel Alloy 825 Bright Rod

Incoloy 825 Bright Bar

ASTM B425 Inconel 825 Bright Bar, UNS N08825 Bright Bar, 2.4858 Bright Bar, Inconel 825 Bright Bar Exporter, Incoloy 825 Bright Bar Supplier, Inconel 825 Bright Rod Manufacturer in Mumbai/India.

Equivalent Grades of B425 Incoloy 825 Bars

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN OR
Incoloy 825 2.4858 N08825 NCF 825 NA 16 ЭП703 NFE30C20DUM NiCr21Mo XH38BT

Incoloy 825 Bar / Rods Chemical Properties

Grade C Mn Si Al S Cr Cu Ni Fe Ti
Incoloy 800 0.05 max 1.00 max 0.05 max 0.02 max 0.03 max 19.50-23.50 1.50-3.00 38.0-46.0 22.0 min 0.06 – 1.20

Incoloy 825 Round Bars Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.14 g/cm3 1400 °C (2550 °F) Psi – 80,000 , MPa – 550 Psi – 32,000 , MPa – 220 30 %
Application Industries
