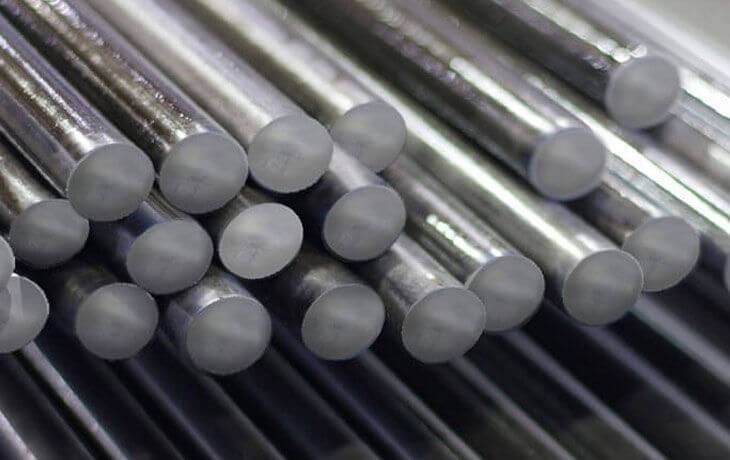

Pragati Metal Corporation ranks among the establishednickel 200 round bar manufacturers and stockists in Mumbai, India, with supply experience dating back to 1977. Nickel 200 is commercially pure wrought nickel with 99.0% minimum nickel content. The alloy holds its strength under heat and pressure, and it resists caustic alkalies, neutral salts, and dry gases.
As a nickel 200 round bar supplier, we roll and machine every bar from tested billets. Each nickel 200 round bar leaves our Mumbai works with mill test certification and dimensional inspection records.
Nickel
200
Bar/Rod
Nickel 200 Round Bars, Nickel N02200 Round Bars, Nickel Alloy 200 Round Bars Exporter, ASTM B160 Nickel Alloy 200 Round Bar, Nickel 2.4066 Round Rods, ASME SB160 Nickel 200 Round Rods, Alloy 200 Round Bars, 200 Nickel Bar & Rods, Nickel 200 Round Bar Manufacturer in Mumbai, India
Here, at Pragati Metal, we fabricate Nickel 200 Round Bars using modern tools and advanced equipment. Our team regularly supervises each round bar at every stage of production. Our company is supplying a comprehensive range of Nickel 200 Round Bars in different grades and specifications to worldwide clients. We ensure that each product undergoes strict quality checking under the inspection of our quality control team. We provide all generated reports, documents, and test certificates along with the products.
Nickel 200 Hot Rolled Round Bar, Nickel Alloy 200 Bars, Nickel 200 Rods, Nickel Alloy 200 Cold Rolled Round Bar, Nickel 200 Cold Drawn Bar, Nickel 200 Polished Round Bar, Nickel Alloy 200 Forged Rods Supplier in Mumbai.
We are offering Nickel 200 Round Bars with outstanding quality features such as sturdy design, low maintenance, excellent anti-corrosiveness, high durability, superior surface finish, and long service life. These bars offer excellent resistance against pitting and crevice corrosion. We check the performance of the round bar at each stage of the manufacturing process. Our company maintains considerable stock to complete urgent requirements. These efficient Nickel 200 Round Bars are available for our worldwide clients in the very affordable price range. Our team follows all manufacturing norms and international standards while fabricating the round bars.
Nickel 200 Round Bars are commonly useful for numerous industrial sectors, including petrochemicals, pharmaceutical industry, paper and pulp industry, power generation plant, chemical industry, oil and gas processing industry, and food processing industry. We ensure to offer accurate dimensions and error-free products. Our packaging team offers several packaging option such as wooden boxes, crates, and bubble wraps to protect the Nickel 200 Round Bars from damage. We provide several shipping options as per the locations and needs of our valued customers. Our company assures on time and safe product delivery.
Nickel Alloy 200 Round Bar Specification
| Standard | ASTM B160, ASME SB160 |
| Round Bar Size | 3mm~ 800mm |
| Square Bar Size | 4mm* 4mm ~100mm* 100mm |
| Flat Bar Size | 2mm ~ 100mm |
| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 2000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
Equivalent Grades of B160 Nickel 200 Bars
| STANDARD | WERKSTOFF NR. | UNS | GOST | AFNOR | JIS | BS | EN |
| Nickel 200 | 2.4066 | N02200 | НП-2 | N-100M | NW 2200 | NA 11 | Ni 99.2 |
Nickel 200 Bar / Rods Chemical Properties
| Grade | Ni | Fe | C | Mn | Si | Cu | Mg | Ti | S |
| Nickel 200 | 99.0 min | 0.4 max | 0.15 max | 0.35 max | 0.1 max | 0.25 max | - | - | 0.01 max |
Nickel 200 Round Bars Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
Advantages of Nickel 200 Round Bars
The commercially pure nickel 200 round bars have 8 main advantages, like:
- Excellent corrosion resistance: Nickel 200 handles caustic soda without stress cracking.
- High thermal conductivity: Heat moves through the bar at roughly 70 W/m·K.
- Good electrical conductivity: Conductivity sits near 18% IACS for electrical parts.
- Excellent ductility: Elongation reaches 40% annealed, so the bar cold-forms without splitting.
- High purity: Minimum 99.0% nickel keeps contamination off food contact surfaces.
- Easy fabrication: Machinists turn, drill, and thread the bar with standard carbide tooling.
- Weldability: GTAW and GMAW joints hold without filler metal on thin sections.
- Long service life: Bars stay serviceable in alkaline duty for decades.
Nickel 200 vs Nickel 201
Carbon content separates the two grades. Nickel 200 carries up to 0.15% carbon, while Nickel 201 holds carbon at 0.02% maximum. That single difference decides which grade suits your operating temperature.
|
Nickel 200 |
Nickel 201 |
|
Higher carbon |
Lower carbon |
|
Better mechanical strength |
Better high temperature stability |
|
Service up to 315°C |
Service above 315°C |
Above 315°C, carbon in Nickel 200 precipitates as graphite at grain boundaries, and ductility drops. Nickel 201 avoids that problem. Cold-drawn Nickel 200 bars reach tensile strength above 550 MPa, which is higher than annealed 201. We stock both grades in the same size range, so switching specifications does not delay your order.
Application Industries
Petrochemical
Chemical
Refineries
Fertilizers
Oil & Gas
Construction
FAQs
Where are Nickel 200 round bars used?
Chlor-alkali plants, caustic evaporators, food processing lines, and electronic components all use Nickel 200 round bars.
Can Nickel 200 bars be customized?
Yes. We cut and polish bars from 3 mm to 500 mm diameter, in any required length.
Why choose Pragati Metal for Nickel 200 Round Bars?
Pragati Metal has been supplying Nickel 200 products for more than four decades. We are ISO 9001:2015 certified, and our Mumbai warehouse stock helps reduce delivery time by avoiding mill lead times.
